Frequency range

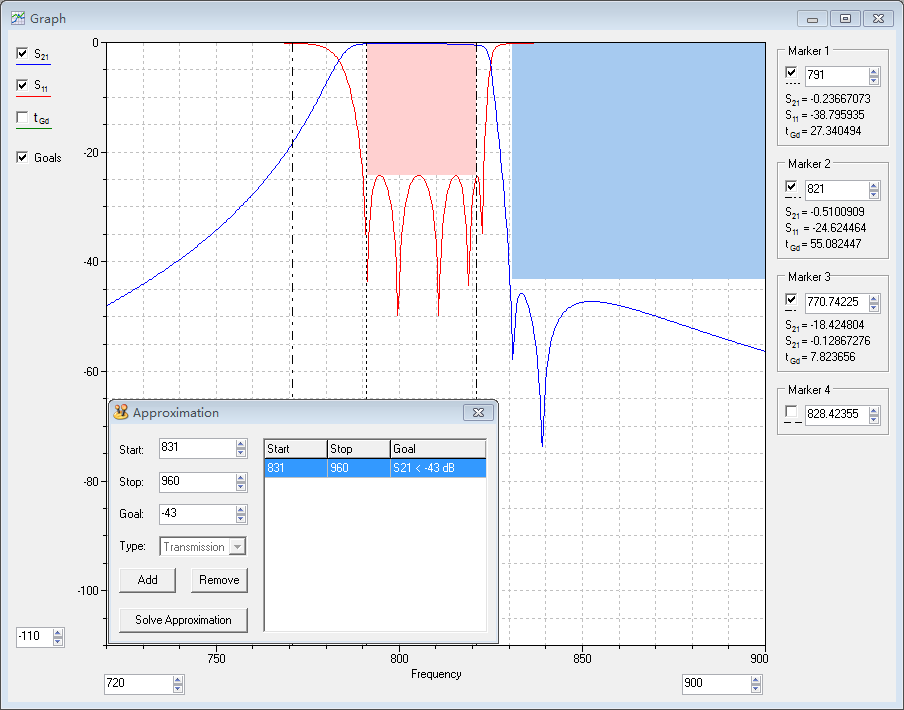

791-821 MHz

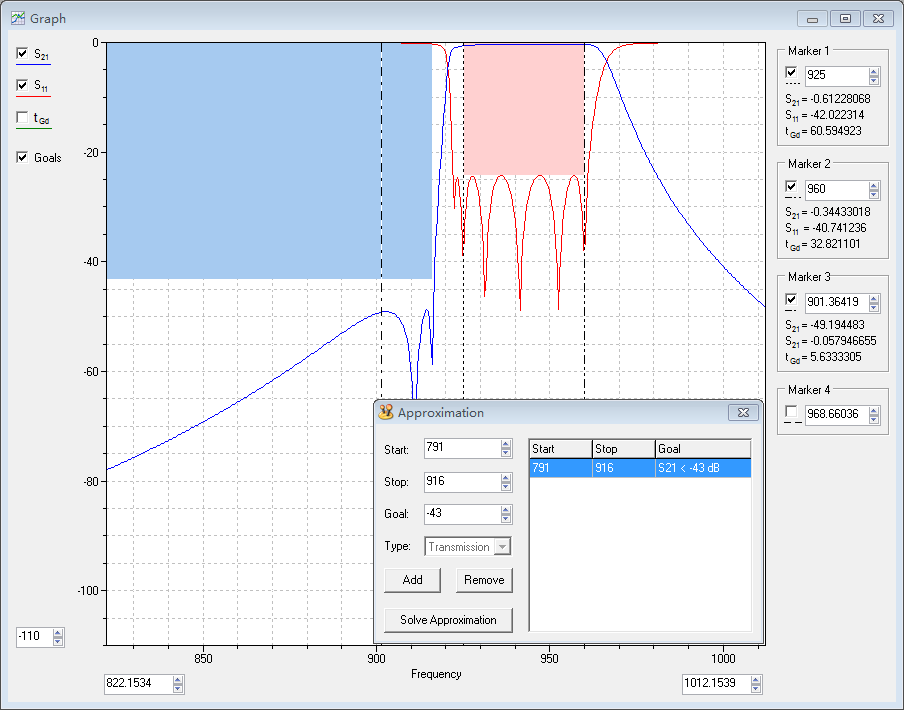

925-960 MHz

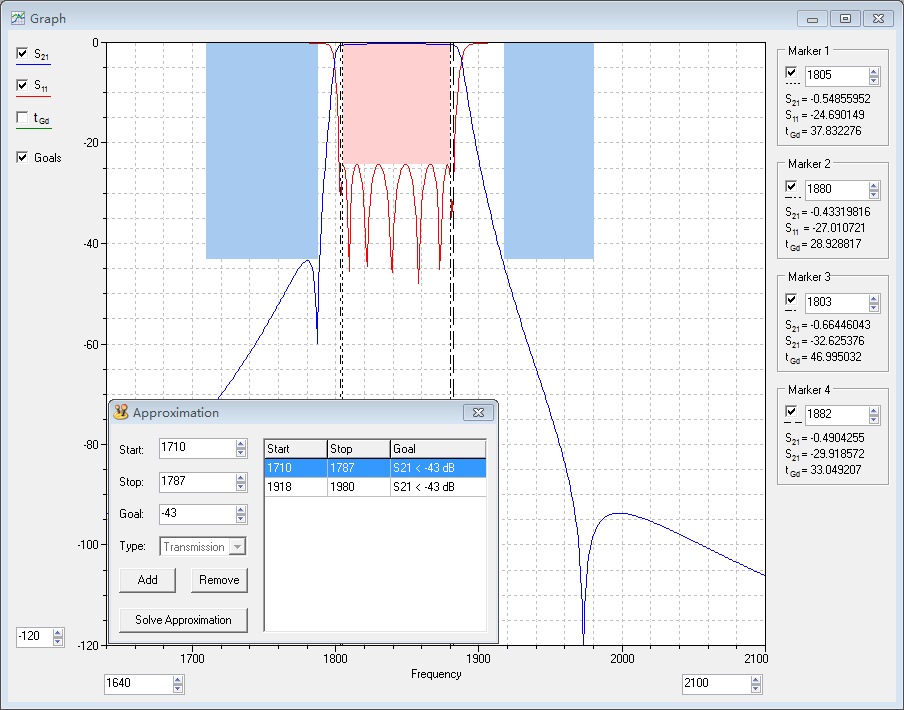

1805-1880 MHz

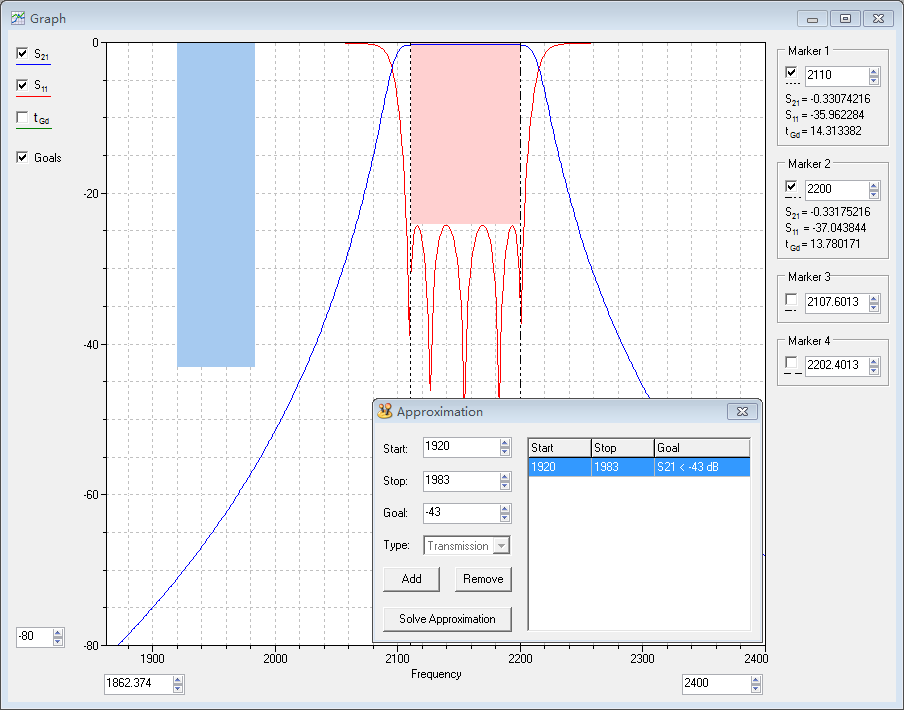

2110-2200 MHz

2620-2690 MHz

Return loss

≥15 dB

≥15 dB

≥15 dB

≥15 dB

≥15 dB

Insertion loss

≤0.7 dB

≤0.7 dB

≤0.7 dB

≤0.5 dB

≤0.5 dB

Rejection

≥40dB@832-862MHz

≥40dB@880-915MHz

≥40dB@1710-1785MHz&1920-1980MHz

≥40dB@1920-1980MHz

≥40dB@2500-2570MHz

Isolation

≥40dB@791-821MHz&925-960MHz&1805-1880MHz&2110-2200MHz&2620-2690MHz

Coupling

30dB ~ 50dB

Input power

80W max (Average) ; 250W max (Peak)

Output power

400W max (Average) ; 1250W max (Peak)

Impedance

50 Ω

Temperature range

-20 °C ~ +70 °C
